Previously I discussed how to perform body tracking in a scene, including the orientation of different body parts. When ARKit recognizes a body, it automatically adds a body anchor object to the running session, from which you can track the body’s movement.

In this blog post, I’ll discuss how to perform image detection in a scene. Once you recognize an image in a scene, you can perform additional tasks such as replacing it or otherwise augmenting it. Specifically, the app will identify the following image in a scene, and highlight it:

Note: You’ll need a physical iPhone to run an augmented reality app. ARKit requires the use of the camera, and you won’t have much joy using an iOS simulator.

Perform image detection

The simplest approach to declaring the image to be detected is to add it to your app’s asset catalog as an AR Reference Image inside an AR Resource Group. It’s also possible to place multiple images in the asset catalog, for identification in a scene.

When ARKit recognizes an image in the scene, it automatically adds an image anchor object (ARImageAnchor) to the running session. It’s common practice to create a dedicated class, known as a scene view delegate (a class that derives from ARSCNViewDelegate), to handle the overrides that are called when an anchor is detected and place in the scene. To do this, you’ll first have to tell your ARSCNView object about your scene view delegate. This can be achieved by modifying the CreatePlatformView method in your handler to set the ARSCNView.Delegate property to the object that represents your scene view delegate:

public class ARViewHandler : ViewHandler<ARView, ARSCNView>
{
    MauiARView? _mauiARView;
    ...

    protected override ARSCNView CreatePlatformView()
    {
        var arView = new ARSCNView()
        {
            AutoenablesDefaultLighting = true,
            ShowsStatistics = true,
            Delegate = new SceneViewDelegate(),
        };

        _mauiARView = new MauiARView();
        _mauiARView.SetARView(arView);

        return arView;
    }
    ...
}

The scene view delegate class derives from ARSCNViewDelegate, and overrides the DidAddNode method that’s called when an anchor is detected and placed in the scene:

using ARKit;
using SceneKit;
using UIKit;

namespace ARKitDemo.Platforms.iOS;

public class SceneViewDelegate : ARSCNViewDelegate
{
    public override void DidAddNode(ISCNSceneRenderer renderer, SCNNode node, ARAnchor anchor)
    {
        if (anchor is ARImageAnchor imageAnchor)
        {
            ARReferenceImage image = imageAnchor.ReferenceImage;
            nfloat width = image.PhysicalSize.Width;
            nfloat height = image.PhysicalSize.Height;

            PlaneNode planeNode = new PlaneNode(width, height, new SCNVector3(0, 0, 0), UIColor.Red);
            float angle = (float)-Math.PI / 2;
            planeNode.EulerAngles = new SCNVector3(angle, 0, 0);
            node.AddChildNode(planeNode);
        }
    }
}

The SceneViewDelegate class overrides the DidAddNode method, which is executed when the image is detected in the scene. This method first checks that the detected image is an ARImageAnchor, which represents an anchor for a known image that ARKit detects in the scene. Then the dimensions of the detected image are determined, and a red PlaneNode (of the same dimensions) is created and overlaid on the detected image. In addition, the overlaid PlaneNode will always orient itself correctly over the detected image.

The PlaneNode class is simply an SCNNode, which uses an SCNPlane geometry that represents a square or rectangle:

using SceneKit;
using UIKit;

namespace ARKitDemo.Platforms.iOS;

public class PlaneNode : SCNNode
{
    public PlaneNode(nfloat width, nfloat length, SCNVector3 position, UIColor color)
    {
        SCNNode node = new SCNNode
        {
            Geometry = CreateGeometry(width, length, color),
            Position = position,
            Opacity = 0.5f
        };

        AddChildNode(node);
    }

    SCNGeometry CreateGeometry(nfloat width, nfloat length, UIColor color)
    {
        SCNMaterial material = new SCNMaterial();
        material.Diffuse.Contents = color;
        material.DoubleSided = false;

        SCNPlane geometry = SCNPlane.Create(width, length);
        geometry.Materials = new[] { material };

        return geometry;
    }
}

The PlaneNode constructor takes arguments that represent the width and height of the node, it’s position, and a color. The constructor creates a SCNNode, assigns a geometry to its Geometry property, sets its position and opacity, and adds the child node to the SCNNode.

To enable body tracking, create an ARWorldTrackingConfiguration object and configure its properties. This is achieved in the StartARSession method in the MauiARView class:

public void StartARSession()
{
    if (_arSession == null)
        return;

    NSSet<ARReferenceImage>? images = ARReferenceImage.GetReferenceImagesInGroup("AR Resources", null);

    _arSession.Run(new ARWorldTrackingConfiguration()
    {
        AutoFocusEnabled = true,
        LightEstimationEnabled = true,
        DetectionImages = images
    }, ARSessionRunOptions.ResetTracking | ARSessionRunOptions.RemoveExistingAnchors);
}

In addition, the StartARSession method retrieves the image to be detected from the asset catalog, and sets it as the DetectionImages property of the ARWorldTrackingConfiguration object.

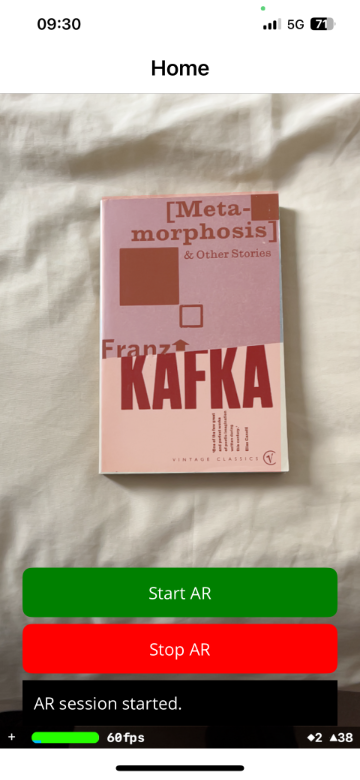

The overall effect is that when the image is detected in the scene, a red rectangle is overlaid on it:

Then, the red rectangle reorients itself in real time if the orientation of the detected image in the scene changes.

Once you recognize an image in a scene, you can perform additional tasks such as replacing it or otherwise augmenting it.
